KRASO Cable Inlet Box System KDS 150 (piece)

https://est.primostar.eu/web/image/product.template/6627/image_1920?unique=7441b35

1 121,62 € 1121.6200000000001 EUR 1 121,62 €

0,00 €

(0,00 € / tk)
  • Süsteem
    • 4-kordne
    • 3-kordne
    • 2-kordne
    • 1-kordne
  • Painderaadius mm
    • 650 mm
    • 1000 mm

Seda kombinatsiooni ei eksisteeri.

Hinnale lisandub käibemaks!

Lisainfo ja tingimused



Saatmine:

    -  Laos olevad tooted: 1-2 tööpäeva
    -  Tellitavad tooted: kuni 4 nädalat

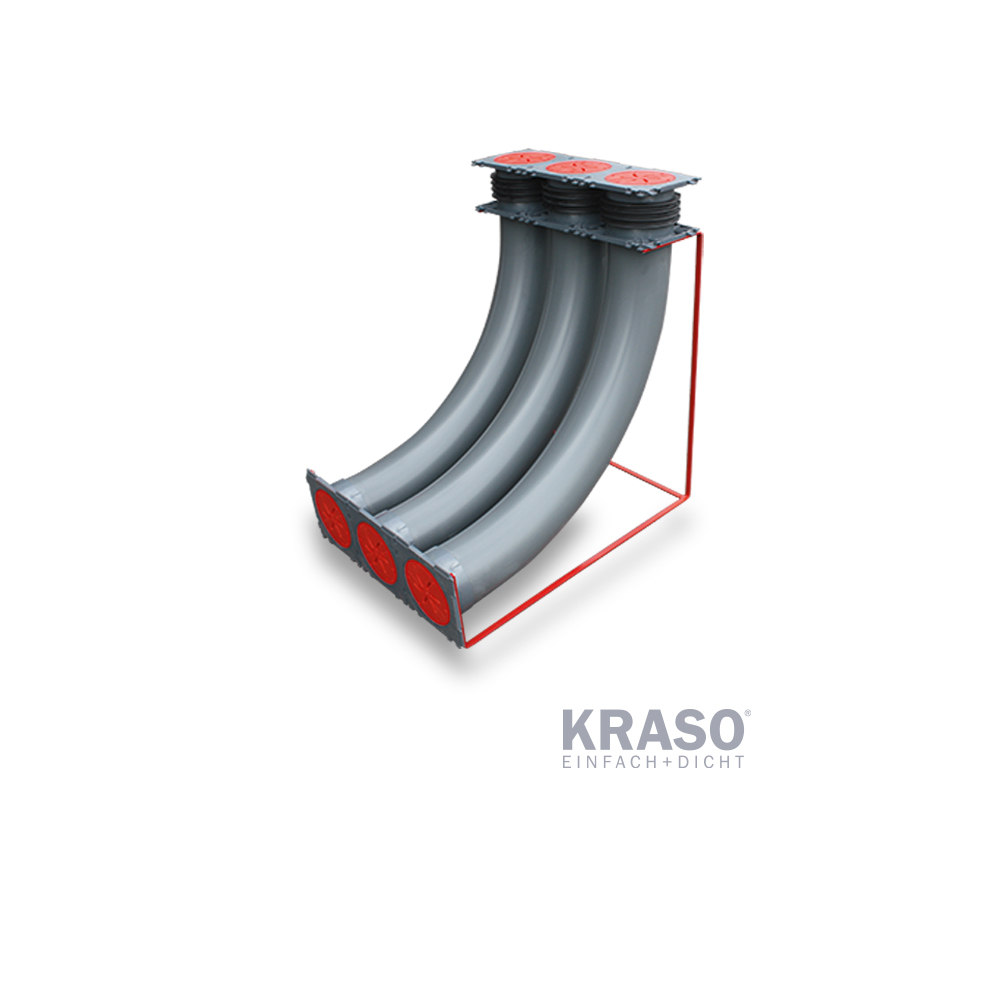

KRASO Cable Inlet Box System KDS 150

for the installation of cables and lines as for example water – electricity - telecommunication etc. into buildings without basement (non-licensed for gas lines according DVGW)

The flexible system for industry and commercial buildings

+ KRASO Cable Inlet Box System KDS 150 offers you a secure and simple possibility to install cables and pipes right into buildings. Together with the KRASO Cable Penetration System KDS 150 this flexible system offers plenty of combinations. With a radius of 650 mm you are able to connect pipes and cable protective hoses at a 90-degree angle to buildings without basements.

+ Due to the variable plug-in system the KRASO Cable Inlet Box System KDS 150 can be combined to many different sizes - according your requirements. + For the installation of cables and lines as for example electricity, telecommunication etc. into buildings without basements (non-licensed for gas lines according DVGW): the ideal solution for industrial and commercial buildings. + Sealing of the base plate by water pressure tight surrounding KRASO 4 Seal.

 + With stable installation device for correct positioning before concreting.

+ Flexible plug-in possibilities from the outside due to KRASO Cable Penetration System KDS 150.

+ Additional media line sealing from the inside using KRASO Sealing Inserts.

+ Including: KRASO KDS 150 Empty Pipe Insert with bayonet fitting for a floor construction with floor heating, insulation and screed. The flexible system for industry and commercial buildings

+ KRASO Cable Inlet Box System KDS 150 offers you a secure and simple possibility to install cables and pipes right into buildings. Together with the KRASO Cable Penetration System KDS 150 this flexible system offers plenty of combinations. With a radius of 650 mm you are able to connect pipes and cable protective hoses at a 90-degree angle to buildings without basements.

+ Due to the variable plug-in system the KRASO Cable Inlet Box System KDS 150 can be combined to many different sizes - according your requirements.

+ For the installation of cables and lines as for example electricity, telecommunication etc. into buildings without basements (non-licensed for gas lines according DVGW): the ideal solution for industrial and commercial buildings.

+ Sealing of the base plate by water pressure tight surrounding KRASO 4 Seal.

+ With stable installation device for correct positioning before concreting. + Flexible plug-in possibilities from the outside due to KRASO Cable Penetration System KDS 150.

+ Additional media line sealing from the inside using KRASO Sealing Inserts.

+ Including: KRASO KDS 150 Empty Pipe Insert with bayonet fitting for a floor construction with floor heating, insulation and screed.

+ A lot of accessories make the KRASO Cable Penetration System a complete and all-purpose package!

Spetsifikatsioon

Süsteem 4-kordne või 3-kordne või 2-kordne või 1-kordne
Painderaadius mm 650 mm või 1000 mm
