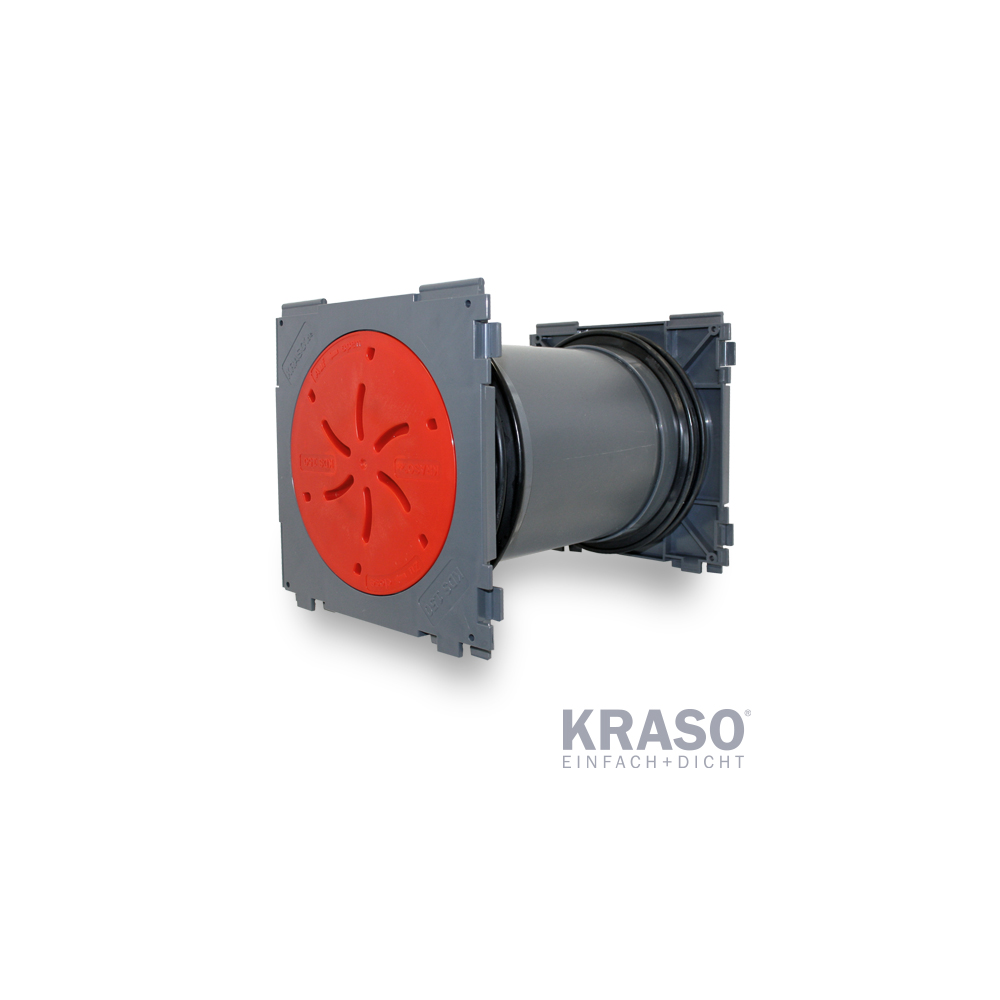

KRASO Cable Penetration KDS /DFW as double wall penetration (piece)
Cable penetration system for installation into triple walls, with gas- and water pressure tight surrounding KRASO 2 Seal on both sides and 2 KDS closure covers, with plug-in system on both sides for forming packages, for the later installation of media lines using KRASO System Sealing Insert (not included in the scope of supply) or for connecting empty pipe hoses using KRASO System Cover (not included in the scope of supply). Optionally available: KRASO Spacer 40 mm for KDS/DFW 150 double wall penetration for the enlargement of the centre distance from 210 mm to 250 mm | DafStB waterproof concrete guideline: stress class 1 + 2
Compatible, tight, secure - the double wall penetration system
+ Compatible with all other current systems! Tight due to our water pressure tight KRASO 4 Seal! Secure due to break-resistant solid wall material!
+ The intelligent, all-purpose and flexible cable penetration system for complex new buildings: public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector
+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas
+ The matching accessories for every purpose!
+ DafStB waterproof concrete guideline: stress class 1 + 2
Spetsifikatsioon
| seina paksus cm | 20, 30, 40, 50, 24, 25, 35, 36,5, 45, 15, 17,5 |
| Läbimõõt KDS | KDS 150, KDS 90 |
