KRASO Casing Type E/FE - stainless steel / casing true diameter (piece)

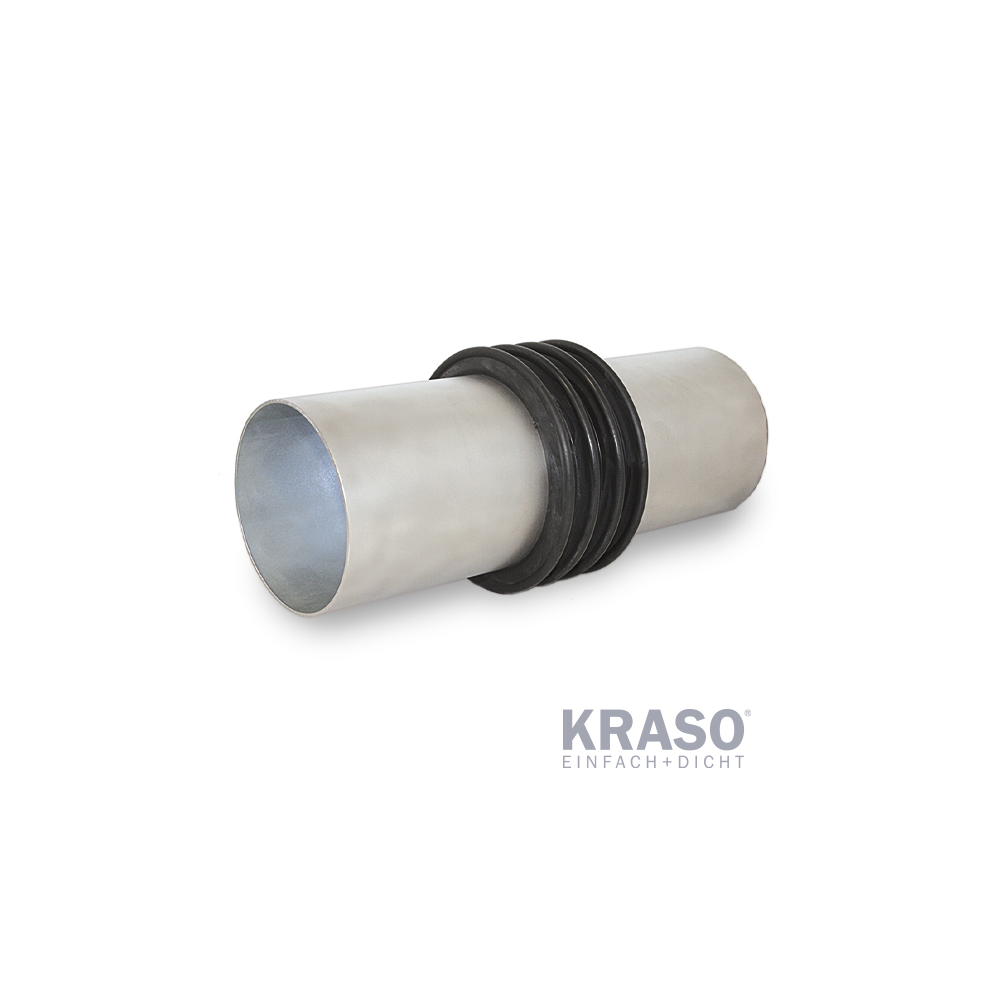

Stainless steel casing for concreting, as a recess for retrofit installation of pipes and cables using a sealing insert (not included in the scope of supply), made of non-corrosive stainless steel V2A, with water pressure tight, gas- and odour-tight, surrounding KRASO 4 Seal and 2 KRASO Covers as an installation aid, ID = InternalDiameter true diameter casing | DafStB waterproof concrete guideline: stress class 1 + 2
For all diameters!
+ Thick-walled true diameter casings for concreting
+ KRASO 4 Seal - MPA-tested up to 10 bar! Gas- and odour-tight - high quality in terms of TA-Air!
+ IAF-tested: radon tight!
+ Certified with the quality seal of the FHRK e. V.
+ Material and processing: weatherproof, impact-resistant plastic, KRASO 4 Seal joined monolithically to the plastic pipe by vulcanization
+ Every diameter and every wall thickness available at short notice! If necessary the size can be adapted individually on the construction-site!
+ Low weight: easy handling, simple installation, low transport costs!
+ Including installation covers! No pre-treatment required!
+ DafStb waterproof concrete guideline: stress class 1 + 2
Spetsifikatsioon
Siseläbimõõdu ID | 80, 250, 100, 125, 150, 200, 300 |
seina paksus cm | 20, 30, 24, 25 |
Saatke päring või helistage meie projektijuhile, kui teil on küsimusi selle kohta, kuidas me saame oma hüdroisolatsioonilahenduste abil teid aidata.
