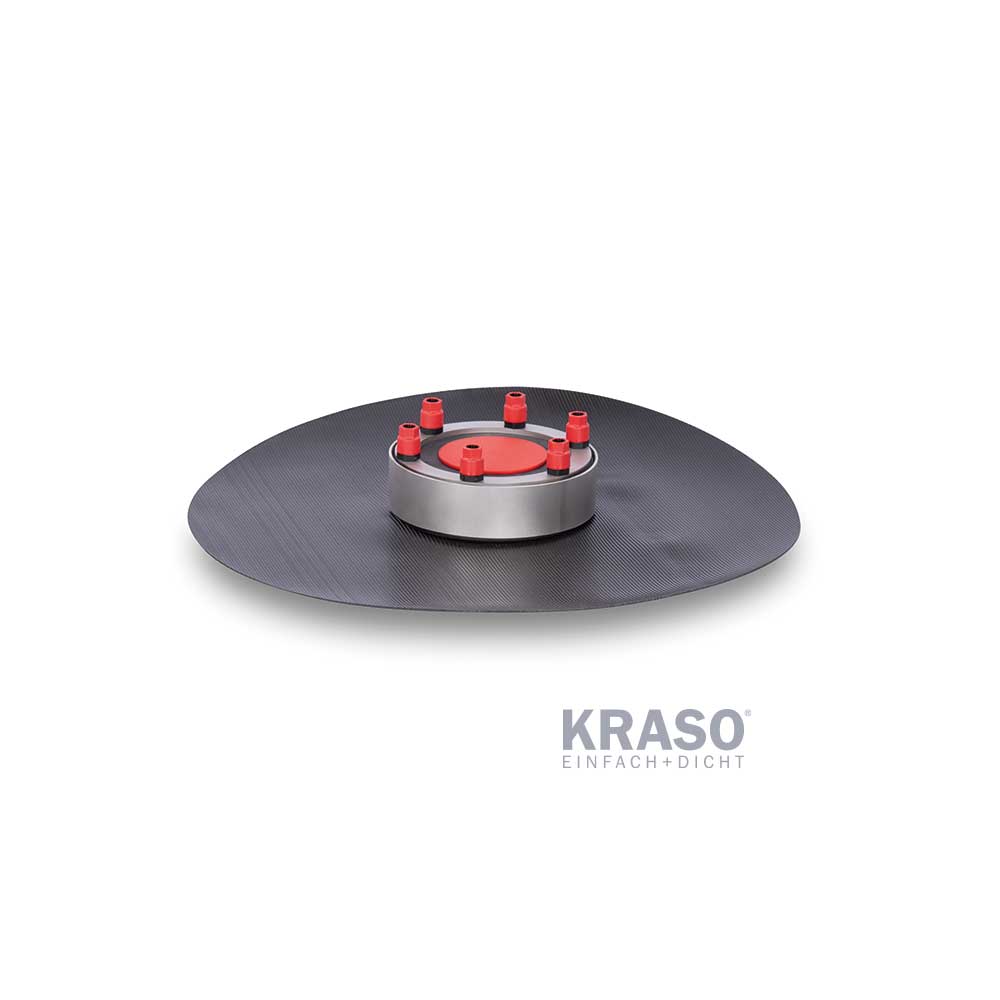

KRASO Foil Clamping Flange Type FKF Universal (piece)
For the sealing of media of all kinds of materials in front of a wall or in the core drilling, with foil flange 1,2 mm, according DIN 16937, oil- and bitumen resistant, surrounding approx. 15 cm, 30 mm seal | DIN 18533 W1 -E and W2.1 -E
The revolution in terms of the integration of media lines into the sealing of larger areas
+ Innovative: water pressure tight sealing of any even and stable cable with our KRASO Foil Clamping Flange Type FKF foil flange!
+ Suitable for all external diameters of media lines and for all materials!
+ We can individually customise the type of sealing sheets or foils: e.g. PVC, EPDM, FPO, RESITRIX®, PP, PE, KRASO-Fol, PYE-PV 200 S5 etc.
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ Metal components made of non-corrosive stainless steel V2A
+ For new buildings and rehabilitation! Various designs for almost every situation!
+ Simple and fast mounting!
+ MPA-tested: water pressure tight up to 2,5 bar!
+ Certified with the quality seal of the FHRK e. V.
+ DIN 18533 W1 -E and W2.1 -E
Spetsifikatsioon
| Meediumiliin Tüüp Universal DD | 0 / 18-65, 0 / 75 / 90 / 110, 0 / 110 / 125 / 135 / 160 |
| Välisläbimõõt FKF | 100, 150, 200 |
Saatke päring või helistage meie projektijuhile, kui teil on küsimusi selle kohta, kuidas me saame oma hüdroisolatsioonilahenduste abil teid aidata.
