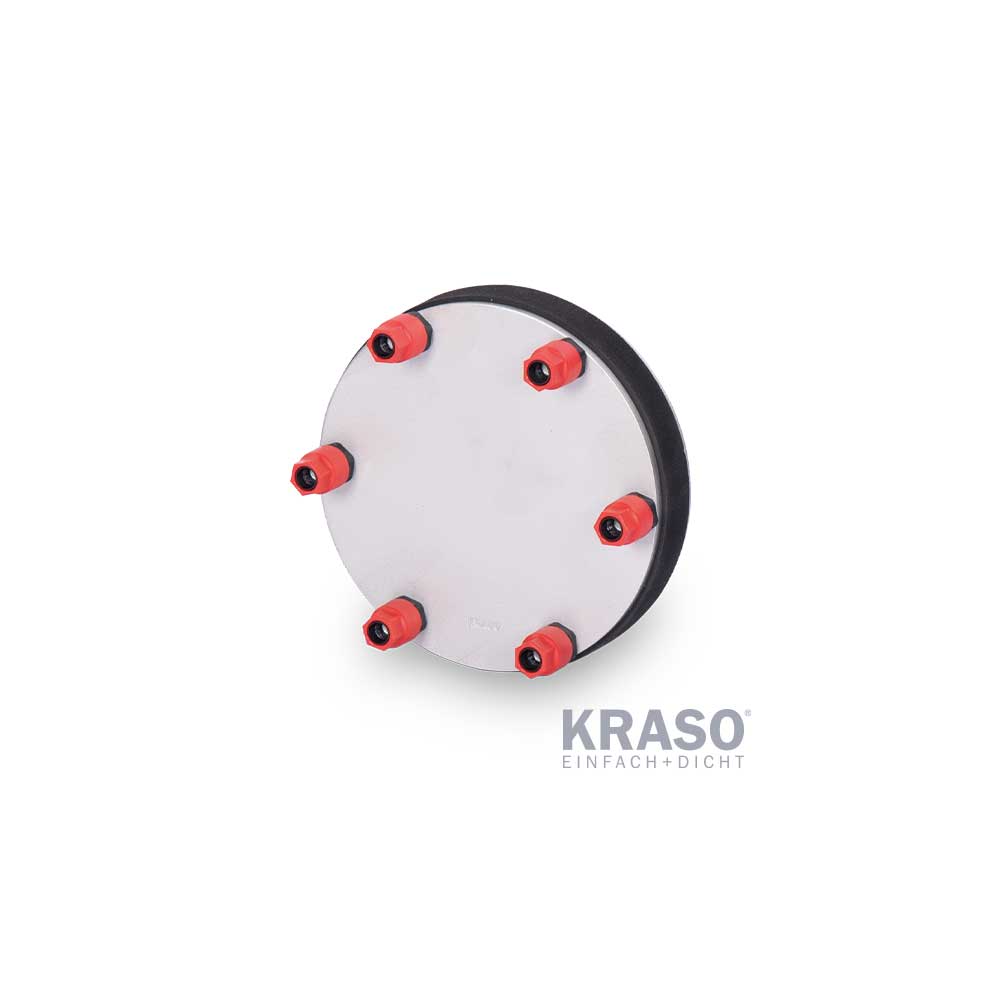

KRASO Sealing Insert Type Blind ED + DD + VD (piece)
blind plug, for pressing water, Torque Control Nut KRASO DKM, non-corrosive stainless steel V2A, single sealing, against pressing water up to 1 bar, 20 mm seal (KRASO Type Blind ED), double sealing, against pressing water up to 3 bar, 40 mm seal (KRASO Type Blind DD), quadruple sealing, against pressing water up to 8 bar, 80 mm seal (KRASO Type Blind VD), from DN 250 with central pressure distibution plate, low installation weight, simpler assembly, optimal pressure distribution | DafStB waterproof concrete guideline: Stress class 1 + 2
Simply just better
+ For core drillings or casings
+ KRASO Sealing Insert quality: 5 mm thick clamping plates made of non-corrosive stainless steel V2A, a specially developed rubber mixture with even better sealing characteristics, welded-on studs instead of through bolts, more studs for an even pressure distribution
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ Tested gas-tight according to DIN EN 13611 (chapter 7.12) proven by the DVGW research centre at the Engler-Bunte-Institute (EBI) of the Institute for Technology in Karlsruhe
+ MPA-tested: protects reliably against pressurised water up to 10 bar!
+ Gas- and odour-tight – high-quality in terms of TA-Air!
+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!
+ Certified with the quality seal of the FHRK e. V.
+ KRASO Sealing Insert Configurator - simple and fast: configure the matching sealing insert online or via our app!
Spetsifikatsioon
| ED + DD + VD | ED, DD, VD |
| Südamiku läbimõõt või KRASO korpus mm | 80, 100, 125, 150, 200, 250, 300, 350, 400, 500 |
