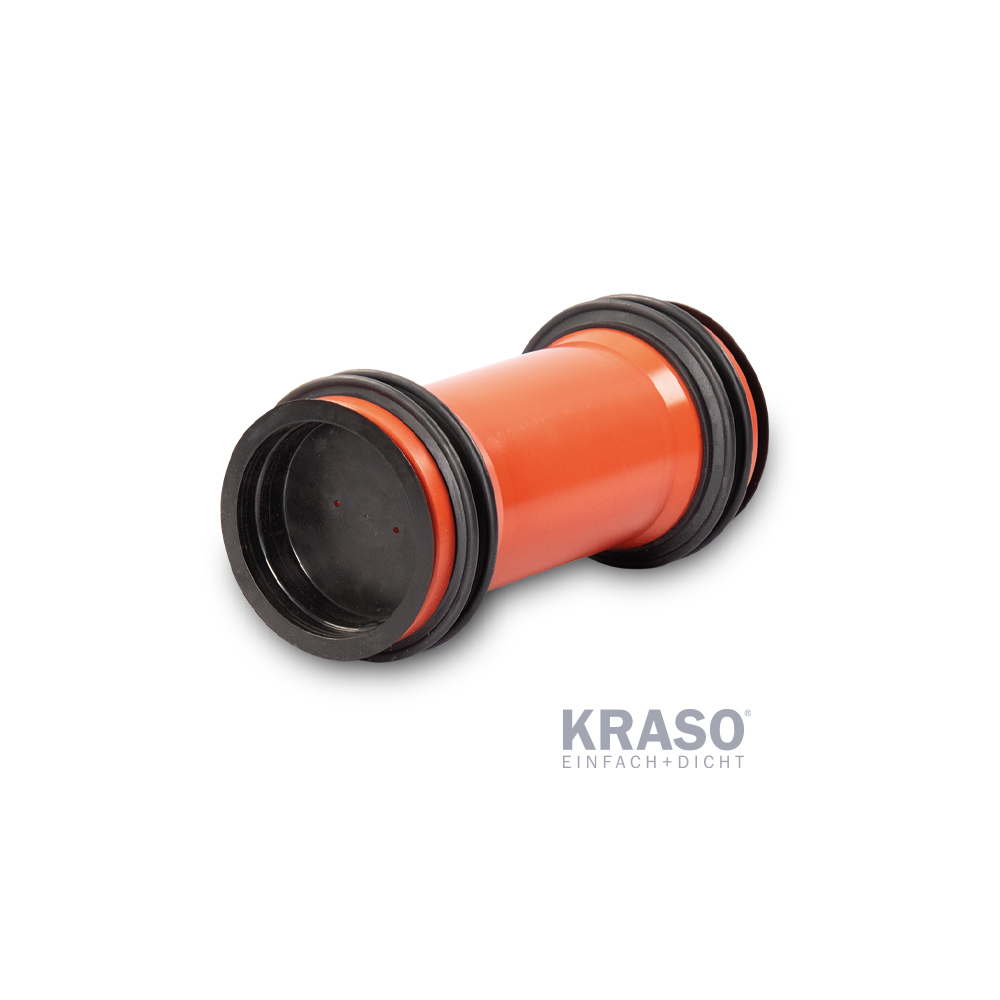

KRASO Wall Penetration Type DFW (piece)
Triple wall - specially made for precast factories -
In accordance with DIN EN 1401, for the installation in triple walls, for connection to KG/HT pipes on both sides, with formed plug-in sleeve on both sides, 2 KRASO Covers as an installation aid | DafStB waterproof concrete guideline: stress class 1 + 2
Easy and secure sealing in precast walls
+ For the installation in triple wall elements: stop occurring water at the outer shell!
+ KRASO Type DFW 4: KRASO 2 Seal on both sides - MPA-tested up to 3.5 bar!
+ KRASO Type DFW 6: KRASO 2 Seal on one side, central KRASO 4 Seal - MPA-tested up to 10 bar!
+ KRASO Type DFW 8: KRASO 2 Seal on both sides, central KRASO 4 Seal - MPA-tested up to 10 bar!
+ IAF-tested: radon-tight!
+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)
+ DafStB waterproof concrete guideline: stress class 1 + 2
Spetsifikatsioon
| Disain | DFW 4, DFW 6, DFW 8 |
| Läbimõõt DN | 110, 125, 160, 200, 250, 315 |
| seina paksus cm | 20, 30, 40, 50, 24, 25, 35, 36,5, 45 |
Saatke päring või helistage meie projektijuhile, kui teil on küsimusi selle kohta, kuidas me saame oma hüdroisolatsioonilahenduste abil teid aidata.
